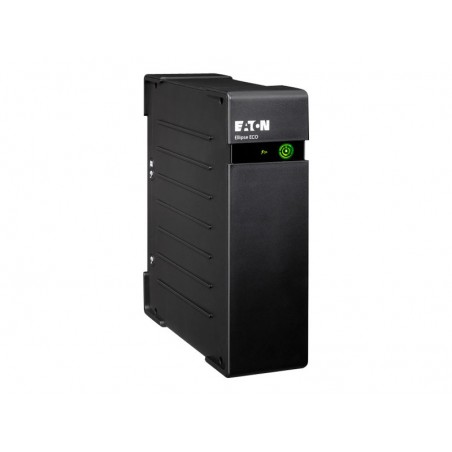

Eaton Ups Ellipse Eco 800 Usb Fr

Product:

Description: Eaton UPS Ellipse ECO 800 USB FR(rack/tower) - AC 230 V - 500 Watt - 800 VA - USB - French 4 Output - 2U - 19inch

Description: Eaton Ellipse ECO 800 USB FR - UPS - AC 230 V - 500 Watt - 800 VA - USB - output connectors : 4 - 2U - 19" - black

Manufacturer Warranty: 12 Months warranty return to workshop

General :

Device Type: UPS - external

Height (rack units): 2U

Rack Dimension: 19"

Color: Black

Power Device :

UPS (Uninterrupted Power Supply) Technology: Off-line

Input voltage: AC 230 V

Input voltage range: AC 184 - 264 V

Input voltage range (adjustable): AC 161 - 284 V

Frequency supplied: 50/60 Hz

Required frequency: 50/60 Hz

Input connectors: 1 x IEC 60320 C14 power supply

Output connectors details: 3 x CEE 7/5 power supply (surge and cut-off)

1 x CEE 7/5 power supply (surge-proof)

Output voltage: AC 220/230/240 V 50/60 Hz

Power supply capacity: 500 Watt / 800 VA

Surge protector for data lines: Telephone/network line - RJ-45/RJ-11

Surge Protector: Yes

Circuit protection: Circuit breaker

Battery :

Technology: Lead acid

Battery life (max): 11 min at half charge

6 min at 70% charge

Network :

Remote management interface: USB

Expansion/Connectivity

Interfaces: 1 x management (USB) - USB 4-pin type B

Various :

Cables included: USB cable - external

Rack Mount Kit: Optional

Features: Wall mountable, audible signal, indicator lights, full discharge protection, cold start function, Eco-efficiency

Compliance standards: CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1

Software / System requirements :

Software included: Intelligent Power Manager

Operating system requirements: Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7

Dimensions and weight :

Width: 8.1 cm

Depth: 23.5 cm

Height: 26.3 cm

Weight: 4.1 kg

The technical data are provided by third parties for information purposes. We assume no responsibility for any errors in the data.
